Question to the brains trust on suspension.

Post by Saturn 5 » Sat Nov 30, 2013 7:21 pm

Today has been a sit and think day, I have lots of them but I did drill out for and fitted the hitch. Oh and I did have a little more tint added to the liming stain as the first sheet I coated dried paler than I expected. The clear coat to go over the top should be now just right.
Moving the 50x50 solid axles about, the heft becomes more apparent and so I start to think ahead before they are installed. The reality is, I doubt I'll get to do many OB dirt roads but one day somebody else will own this van so I'll make it the best I reasonably can.
On a corrugated road I imagine the axles would start to wobble something like a guitar string, affecting the whole ride of the van and contents if it is not controlled. And so my question to those with prior experience.
If I was to under sling a heavy strap or webbing holding the axel at the centre point and in a straight line, would this be as effective as I think it should be? To phrase that a little better, would it stop what I think would be a kind of harmonic?
Someone must have tried this before, and does anyone on the forum use this strap at the moment?

User avatar
Old Techo
Over 10 kay Club
Posts: 11510
Joined: Fri Dec 26, 2008 1:23 pm
Location: Melbourne

Re: Question to the brains trust on suspension.

Post by Old Techo » Sat Nov 30, 2013 8:53 pm

50 mm axles seem overkill for a 5.1 metre van. I think a single 45 mm is good for 1400 kg. How heavy will the van be?

I'm guessing a tad but I reckon the resonant frequency of a 50 mm axle would be quite high, in terms of corrugation induced vibrations to the suspension in general. Also the amplitude of any axle resonant vibration would be bugga-orl. In other words, absolutely no axle natural resonance suppression modifications are needed, in my estimation.

Note, we are discussing just the bare axle as a guitar string - and nothing to do with shockers, which will be needed to control the springs.
Regards, Old Techo
2007 Prado Grande Diesel Auto
2004 Roadstar Limited Edition

Saturn 5
Been here for a while
Posts: 136
Joined: Sun Sep 08, 2013 4:27 pm
Location: Winmalee NSW

Re: Question to the brains trust on suspension.

Post by Saturn 5 » Sat Nov 30, 2013 11:25 pm

Oops I should have written 45x45 mm. The comparison with the guitar string was wrong of me too OT. I'll try again. Meaning to say, a rock lifting a wheel on one side with force, say at 80 kph, would send down the axle some kind of energy which on rebound of the spring would need to be controlled. So if I'll spit it out, would a single centre strap as described, be a useful alternative to a shock on each side? If that is, the strap was taut when axle was in a line same as when at rest.
I hope I clarified that mud a little.

George W.

User avatar
Old Techo
Over 10 kay Club
Posts: 11510
Joined: Fri Dec 26, 2008 1:23 pm
Location: Melbourne

Re: Question to the brains trust on suspension.

Post by Old Techo » Sun Dec 01, 2013 6:45 am

Saturn 5 wrote:So if I'll spit it out, would a single centre strap as described, be a useful alternative to a shock on each side?
George, I'm still not quite getting the strap picture but suffice to say there is NO, I say again, NO alternative to a shock fitted as close to each spring as practicable.

Secondly, simple solid or beam axles are not intended to carry any loads i.e. be subjected to any forces at their mid point or thereabouts.
Regards, Old Techo
2007 Prado Grande Diesel Auto
2004 Roadstar Limited Edition

User avatar
dieseltojo
Major contributor
Posts: 6197
Joined: Wed Jun 24, 2009 5:06 pm
Location: Doveton vic

Re: Question to the brains trust on suspension.

Post by dieseltojo » Sun Dec 01, 2013 8:35 am

Hi Saturn 5,
That bit about brains trust pretty well excluded me , but I am interested in the
"If I was to under sling a heavy strap or webbing holding the axle at the centre point and in a straight line" question.

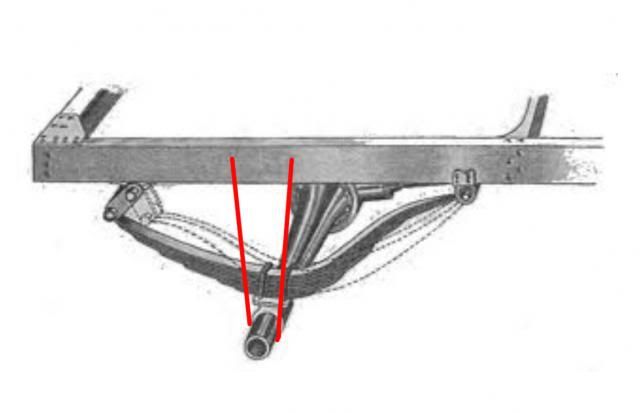

I can only envision some thing like I drew in the pic, but that would negate any axle movement at all and can't be what you mean. So I am having a problem visualising your idea.
